Equal tee

Description

Grooved equal tees provide an economical and efficient method of changing direction and adding an outlet in piping systems.

Sizes

Available sizes are DN25-DN250.

Operating pressure

21 bar. Note! Nordic Flow thin wall pipes with the maximum permissible pressure class PN16.

Material Specification

Body: Cast iron ASTM A536 65-45-12
Finish: Red paint RAL 3000 or galvanized (Dacromet)

Specification:

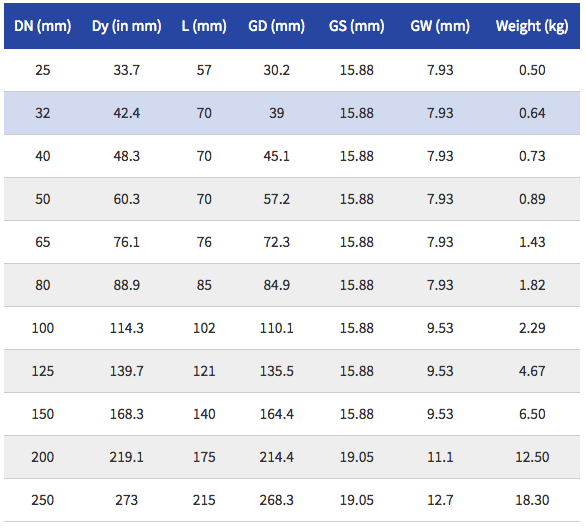

DN (mm) Dy (in mm) L (mm) GD (mm) GS (mm)  GW (mm) Weight (kg)
25 33.7  57 30.2 15.88 7.93 0.50
 32 42.4 70 39 15.88 7.93 0.64
 40 48.3 70 45.1 15.88 7.93 0.73
 50 60.3 70 57.2 15.88  7.93  0.89
 65 76.1 76 72.3 15.88 7.93 1.43
80  88.9  85  84.9  15.88  7.93  1.82
100 114.3 102 110.1 15.88 9.53 2.29
125  139.7 121 135.5 15.88 9.53 4.67
150 168.3 140 164.4 15.88 9.53 6.50
200 219.1 175 214.4 19.05 11.1 12.50
250 273 215 268.3 19.05 12.7 18.30
