Y-strainer

Y-Strainer  DataSheet

Y-strainer

  • Vertical or horizontal mounting
  • Easy to install and simple to maintain
  • Operating pressure 21 bar

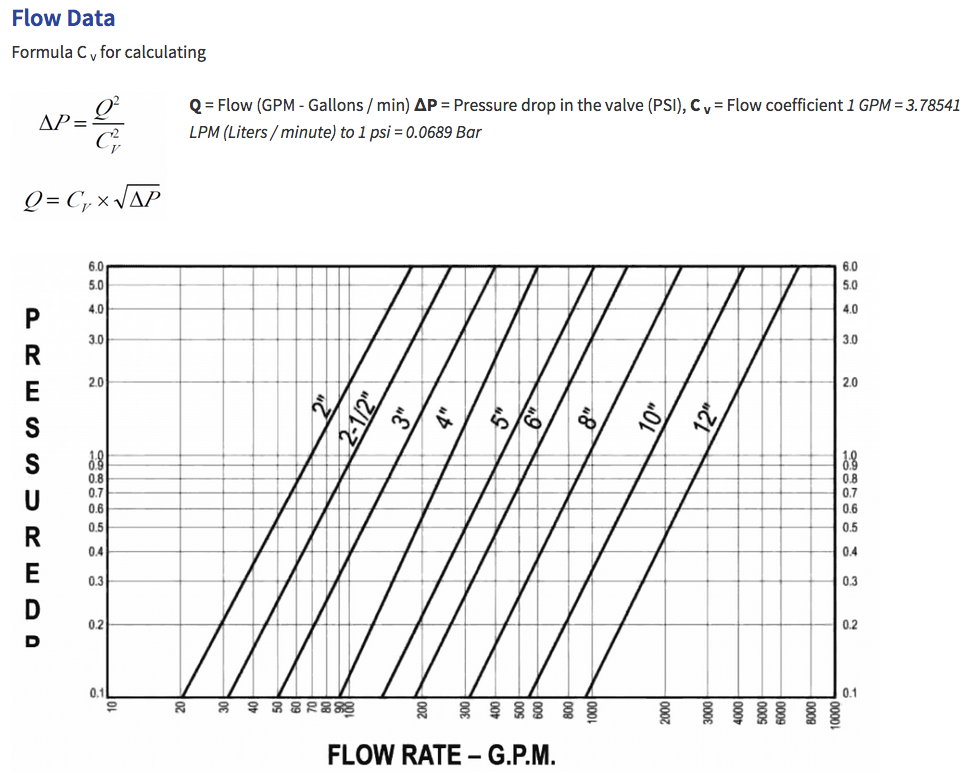

  • Low pressure drop

Material Information

1. Body: Cast Iron ASTM A 536
Surface treatment: FBE-treated inside and outside
Colour: Red or blue RAL3000 RAL5015
addition: Hot-dip galvanized

2. Filter screen: Rosteri 304 acc.
Red 2 to 8 “(DN50 – 200): 8.0 mm diameter holes
Blue 2-3 ‘(DN50 – 80): 1.6 mm diameter holes
Blue 4 to 8 “(DN100 – 300): the diameter of holes 3.2 mm

3. Material:
Frame: Material: Cast Iron ASTM A 536
Standard Surface treatment: Hot dip galvanized
Seal: Standard: Class “E” EPDM (green)
Temperature range: -34 ° C – + 110 ° C.
Bolt / Nut: Hot-treated steel, galvanized according to ASTM B-633, the locking cap screw to ASTM A-183

4. The tongue end: Cast Iron ASTM A 536
Standard Surface treatment: Hot dip galvanized

5. Closure: soft iron ASTM A 197 / A 47
Surface treatment: Hot dip galvanized
